FULL HD WI-FI camera module with motion sensor
FULL HD camera module of small dimensions offers the possibility of remote control via a Wi-Fi network, intended for installation in electronic devices or other objects.
FULL HD WI-FI CAMERA MODULE WITH MOTION SENSOR
Camera modules are small devices, specially designed for hidden installation in selected objects. Their main advantage is high flexibility in use. The module can be placed in a large number of installations from small to large objects, making it the perfect choice for covert monitoring of employees, babysitters, or children's activities.
This FULL HD WI-FI camera module with motion sensor is equipped with a Full HD camera with 1080p resolution, an external PIR sensor for motion detection, and can be easily controlled via a mobile application using Wi-Fi. It also has a slot for micro SD memory cards up to a capacity of 32GB.
KEY PROPERTIES
- Camera angle 78°
- records video in FULL HD resolution (1920x1080px)
- microSD card support up to 32GB
- possibility of non-stop operation
- convenient control via a mobile application via Wi-Fi
- support for Android and iOS operating systems
- motion detection using a PIR sensor
To connect the camera module to your phone or tablet via Wi-Fi, you need to install the "Yi Eye" application on your device, which you can download for free from Google Play or the App Store. You then connect your phone to the local WiFi network, scan the attached QR code from the module into the application, and then you can easily watch the live video stream, wherever you are in the world.
In the "Yi Eye" application, you can also change the recording mode of the module, which is continuous recording mode, scheduled recording mode (after entering the date and time from when to when the camera should record) or motion detection mode, where the camera starts recording when it detects movement. In this case, it will automatically record the recording, which will then be sent to a message in the application.
The camera module is equipped with a USB port, after connecting it to a power source (power bank, 5V adapter) using the included USB cable, you can simply recharge the built-in battery. The camera module can also record while the power is on.
TIP: If you purchase a module with a high-capacity battery, charging the battery may take a long time. For fast charging, we recommend purchasing an external 3.7V Li-Po battery charger.

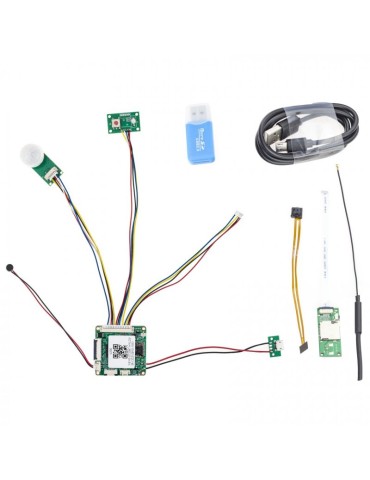

PACKAGE CONTENTS
- FULL HD WI-FI camera module with motion sensor
- USB cable
PARAMETERS
| Special features | PIR sensor, For long-term operation from el. networks, Motion alerts, Video + Audio, Scheduled recording |
| Means of communication | Recording to own memory |
| Distinction | Full HD (1920x1080px) |
| Recording method | Memory Stick |
| Application | Yi Eye |
| Shot angle | 78° |
| Recording mode | continuous recording / timer / motion detection |
| Consumption in motion detection mode | 1 mA |
| Possibility of non-stop operation in el. sewing | Yes |
| Consumption during filming | 350 mA |
| Shot angle | 78° |
| Audio + video | Yes |
| Capacity | microSD support up to 32 GB |
| Distinction | 1920x1080px |
KM40-FHD
FULL HD camera module of small dimensions offers the possibility of remote control via a Wi-Fi network, intended for installation in electronic devices or other objects.
