IP camera module Lawmate PV-DY20i

The PV-DY20i camera module is a professional product, suitable for various types of installations. Its simple operation, stable mobile application for remote monitoring and relatively long battery life make this product one of the best built-in modules on the market.

KM38
€0.00
Tax included
Out-of-Stock

IP CAMERA MODULE LAWMATE PV-DY20I

The PV-DY20i camera module is intended for customers who are thinking of installing their own hidden camera. It provides a wide range of possibilities. The module is equipped with a WiFi antenna, enabling an Internet connection at the installation location and remote monitoring throughout the world.

For such monitoring, you just need to download the freely available and stable application "LM Cam", which is in Czech, or the application called " PV Cam Viewer" (in English), and then you can remotely watch the camera footage, take recordings or photos, save the recordings or download and play.

PARAMETERS:

  • selectable recording resolution Full HD 1920x1080/ HD 1280x720/ WVGA848x480p at up to 30FPS
  • takes 2MP photos
  • H.264 compression, or JPEG
  • MOV video format, JPG photo format
  • the angle of engagement 66 degrees
  • brightness 3.3 LUX/ F 2.0
  • built-in WiFi module enabling remote monitoring via the Internet
  • 2 recording modes: continuously / when motion is detected
  • optional loop recording
  • record on SD card up to 32GB
  • consumption during recording 450-500 mA
  • standby consumption: 8.5 mA
  • battery: Li-on 2200mAh
  • charging time: 4 hours
  • records both video and audio
  • optional recording of date and time on videos and photos
  • record up to 240 min. continuously (when using WVGA and switching off WiFi), or 180 min (with FULL HD and WiFi on)
  • possibility of a permanent power supply from the network or power bank
  • when using an external power supply (5V USB adapter or power bank), the maximum recording length can be up to 10 hours

The Lawmate PV-DY20i camera module is a top product designed for a variety of built-ins and hidden installations. It can be used in the office, warehouse, or home. It is enough to place it in a hidden place or in a selected item and then use its benefits.

Its biggest advantage is the possibility of remote monitoring over the Internet using a mobile application. You only need to connect the camera module to the router at the installation location and everything else, i.e. both the settings and your own monitoring, can already be done using the "LM Cam" or "PV Cam Viewer" mobile application.

Another great advantage is the possibility of powering the camera module either from the external battery supplied together with the module, but also with the help of a USB adapter or power bank. The only limit of endurance is the capacity of the inserted card. With a maximum supported card of 32GB, it is possible to record up to 10 hours of recording in Full HD quality.

The module provides three selectable resolution levels from WVGA to FULL HD. The lower the resolution you choose, the more space you save on the inserted card and at the same time battery life.

A great feature of the lawmate module is the possibility of a permanent power supply from the network using an adapter or possibly from a power bank. This makes it possible to make the module an object for continuous monitoring of space.

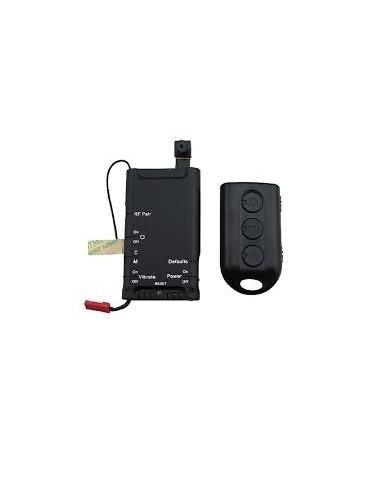

The package of the camera module also includes  the Lawmate PI-RF50 remote control which allows you to control the module up to a distance of 10 m (this is mainly about its hidden switching on or off)

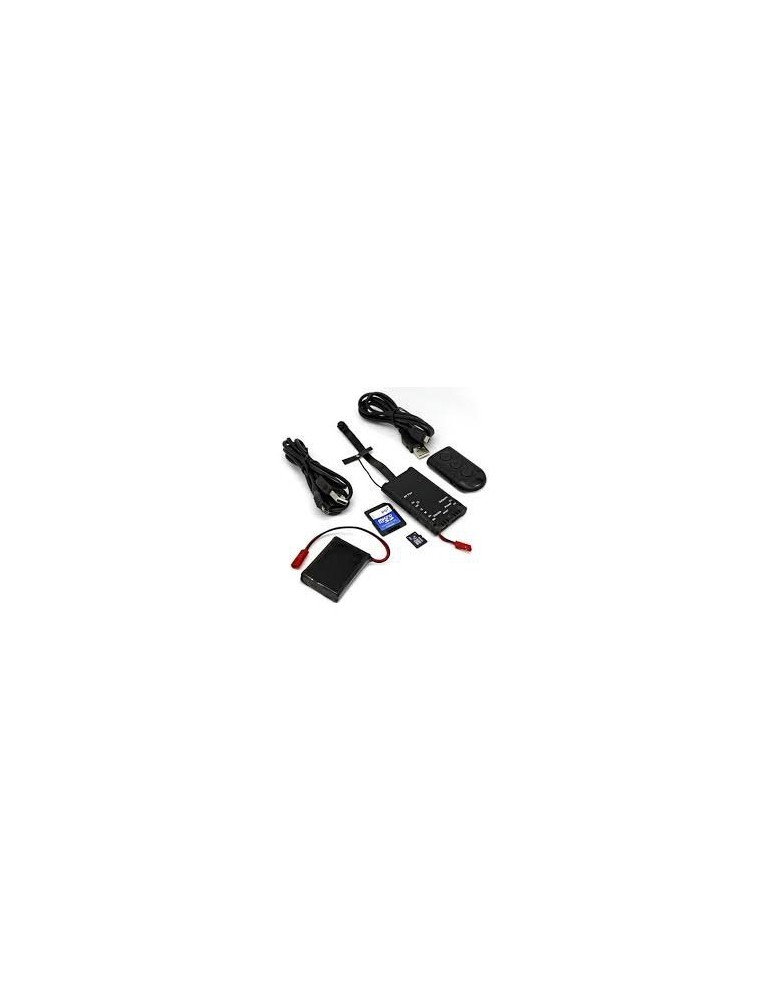

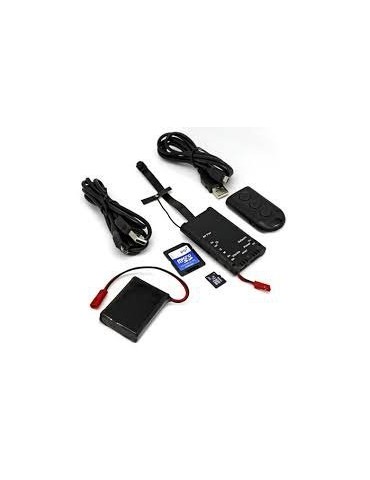

PACKAGE CONTENTS:

  • PV-DY20i camera module
  • remote control PI-RF50TX
  • Li-on battery 3.7V/ 2200mAh
  • USB power cable
  • 16GB micro SD card

  • LOWEST PRICE GUARANTEE ON THIS PRODUCT:

If you find this product on the market at a lower price,  we will immediately match our price to the same level.

PARAMETERS

Special features Image detection of movement, For long-term operation from el. networks, Motion alerts, Video + Audio, Time stamp
Means of communication Recording to own memory
Working modes and location Long-term operation from electric networks, On the corridor
Power supply method from its own battery
Recording method Memory Stick
Image motion detection Yes
Application LM Cam
Number of FPS up to 30
App for iOS / Android LM Cam / PV Cam Viewer
Max. recording length until the capacity is filled 300 minutes (when using a 16 GB SD card)
Possibility of non-stop operation in el. sewing Yes
Aperture 3.3 LUX
Consumption during filming 450 - 500 mA
Image sensor 1,3" CMOS
Shot angle 66°
Photo Yes
The audio itself No
Audio + video Yes
Max. length of recording from its own battery 240 minutes
Automatic start Yes
Recording quality optional 1920x1080/ 1280x720/ 848x480
Battery capacity 2 200 mAh
Charging time 6 hours
