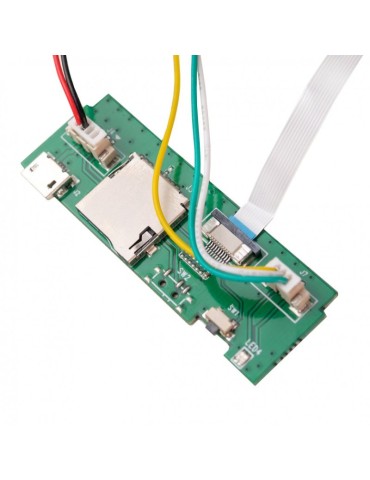

2K camera module with PIR sensor 2K02

2K CAMERA MODULE WITH PIR SENSOR 2K02

Camera modules are small devices, specially designed for hidden installation in selected objects. Their main advantage is their high flexibility of use. The module can be placed in small or large objects, from stuffed animals to electronics. This makes it the perfect choice for covert monitoring of employees, babysitters, or the activities of your children.

The camera module with PIR sensor 2K02 is equipped with a 2K camera with a resolution of 2304x1296px and has a slot for a micro SD memory card with a maximum capacity of 32GB. Thanks to motion detection, it is possible to capture the situation only when something is happening in front of the camera and save both the battery and the memory on the micro SD card.

KEY PROPERTIES:

• 2K recording resolution (2304x1296px@30FPS)
• recordings include sound
• motion detection using a PIR sensor
• SD card support up to 32GB
• the possibility of non-stop operation from electricity networks

The device takes photos and records video continuously when manually triggered or when motion is detected. The module can be easily controlled using the included remote control. After connecting to the monitor, the OSD menu will appear, where you can set individual parameters, such as video resolution, date and time, recording length, motion detection sensitivity, etc.

OTHER FEATURES AND FUNCTIONS:

• camera angle 60°

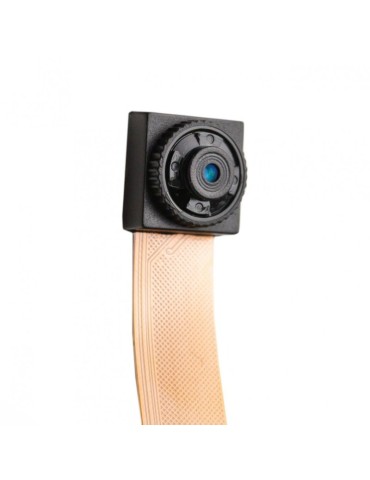

• mini camera on a 13 cm long cable for easier camouflage
• loop recording option
• OSD menu
• date and time on records
• the endurance in wireless operation depends on the capacity of the connected battery
• H.264 compression
• ​small dimensions of the module 39 x 39 x 6 mm
• camera size 11x11mm
• lens cable length 13cm

• PIR MOTION DETECTION

The external PIR sensor ensures extremely low energy consumption. Thanks to this, this camera module is suitable for long-term monitoring of spaces without any electricity supply.

• NON-STOP OPERATION FROM ELECTRICITY NETWORKS

The module enables its continuous operation when powered by electricity. networks. Just connect it to the power supply via a micro USB connector (e.g. a USB adapter with a USB cable).

• EASY DOWNLOAD OF RECORDED RECORDINGS

To start recording, you must always insert a micro SD card into the module. Captured recordings can be played by inserting a microSD card into a PC or by connecting the camera module to a monitor or TV with the supplied video cable.

TIP:

If you purchase a module with a high-capacity battery, charging the battery may take a long time. For fast charging, we recommend purchasing an external 3.7V Li-Po battery charger.

PACKAGE CONTENTS:

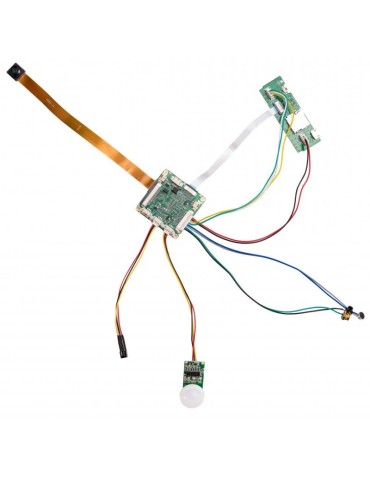

• camera module with PIR sensor

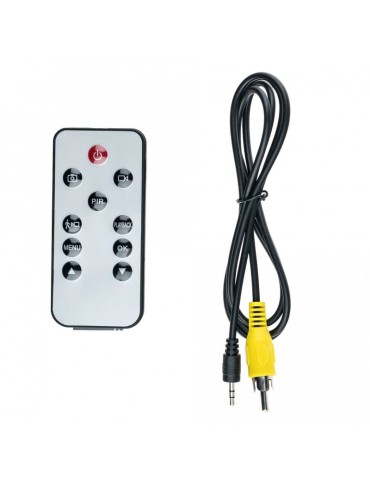

• remote control
• AV cable

Note:

Micro SD card, USB power adapter, and USB cable with micro USB connector are not included in the package.
