2 channel mini camera and recorder for car or motorcycle Secutek C6

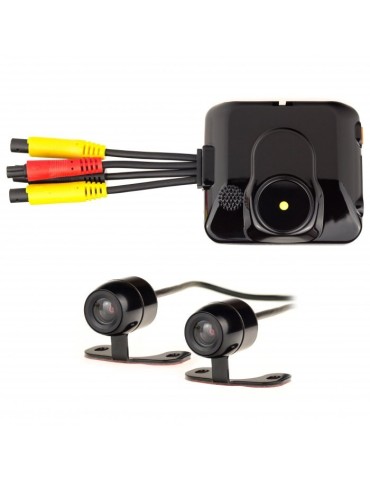

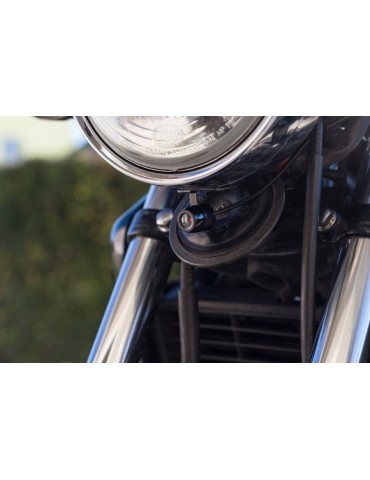

This camera system is especially suitable for installation on a motorcycle. However, using it in a car is also not a problem. The system consists of two HD cameras and a mini recorder with a 2-view LCD display.

CAM32
€0.00
Tax included
Out-of-Stock

2 CHANNEL MINI CAMERA AND RECORDER FOR CAR OR MOTORCYCLE SECUTEK C6

The Secutek C6 is the perfect small system for monitoring the front and rear of your vehicle. The mini cameras are waterproof and can be installed both indoors and outdoors. A significant advantage of this camera is the parking mode, which protects the vehicle against accidents during parking.

PRODUCT PARAMETERS:

  • HD resolution (1280x720px)

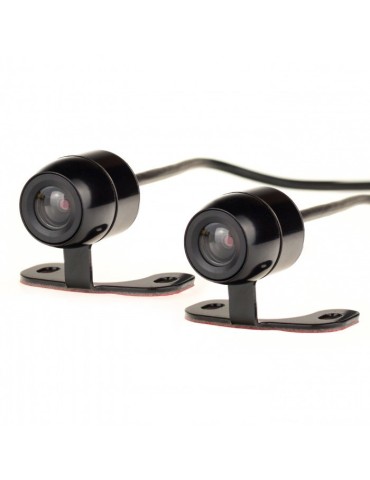

  • 2 waterproof mini cameras, IP57

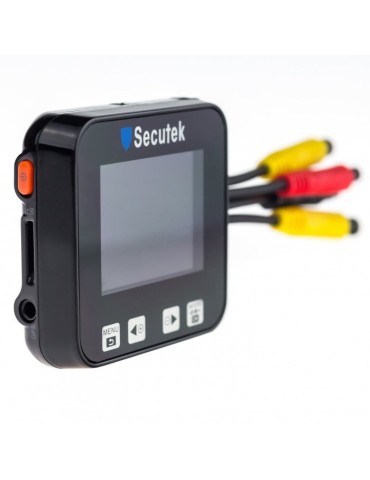

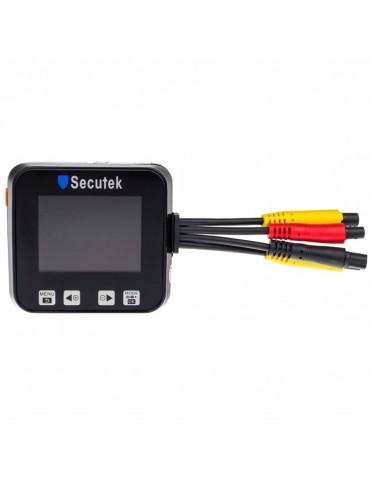

  • standalone recorder with 2" LCD display
  • the possibility of connecting an external GPS module for location recording (not included in the package)
  • simple assembly using adhesive 3m pads
  • compact design
  • support for up to 32GB micro SD cards
  • loop recording
  • the possibility of connecting directly to the car battery
  • record the date and time on the recording
  • audio recording option

The C6 camera system, which is very suitable for installation on a motorcycle, is an economical solution for a dual camera system with a DVR recorder.

The system includes two HD cameras with a resolution of 1280x720px/30FPS, as well as an external GPS module for recording the progress of the journey to the map background, and the core of the system is a DVR recorder with a 2" LCD display, which serves both for playback of recordings as well as for setting the entire system.

The most suitable way of installation is to connect the system directly to the car battery or the battery of your motorcycle. In this case, the system will be turned on and the recording will start immediately after the engine is started, and vice versa, the recording will end after the engine is turned off.

SETTINGS IN THE MENU

Parameter Possible settings Explanation
Size VGA / D1 / HD Resolution settings
Timestamp: Date&Time / Off time stamp on records
Rec Sound On / Off audio recording on / off
G-Sensitivity Off / Low / Medium / High accelerometer sensitivity setting
Parking Mode On / Off turning on the parking monitor
Beep On / Off beeping sound when pressing buttons
Language English / French / Deutsch / Italian / .. language selection
Auto Off 1 min / 3 min / 5 min / Off automatic shutdown setting
Light Freq 50Hz / 60Hz light frequency setting

Other functions of the device include the ability to set the brightness for individual cameras, format the inserted micro SD card, or set the time zone.

It is possible to display only the front, only the rear, or both cameras at the same time.

PARKING MODE

If you activate the parking mode, every time you park the car, the camera remains active in surveillance mode, during which it records at a reduced frame rate of 1FPS (1 frame per second), thanks to which the camera's consumption drops to only 300mA,  and 1 hour of recordings takes only 550Mb capacity.

For example, if you have a 44Ah battery in your car, the camera system will last approximately 6 daysAs soon as you start, the camera will automatically switch back to standard working mode.

PACKAGE CONTENTS:

  • recorder with 2" LCD display
  • 2x waterproof HD camera (length of camera cables approx. 290cm)
  • cable for direct connection to the car battery (approx. 300cm)
  • glass DVR recorder holder
  • cable ties

PARAMETERS

Number of FPS 25 FPS
Gyroscope Yes
Date and time on records Yes
Parking attendant Yes
Automatic recording on startup Yes
GPS can be connected
WDR Yes
Audio Yes
IR illumination Yes
Video compression H.264
Power supply 10 - 24V
Shot angle 70°
Frame rate 25 FPS
Capacity microSD support up to 32 GB
Distinction 2x 1280x720px
Motion detection Yes
Dimensions cameras Ø18.3 x 22mm depth / DVR 65 x 58 x 19mm
